o Minimized the limitation on the designing of appearance and made it possible to print on the film surface by using film materials

o Expanding the range of applications with the features of wafer-thin, light, and water resistance (interior, clothes, high-tech devices, swimming pools, etc.)

o No limitation on the size, the price competitiveness stems from the decrease in production cost comparing to the production of the conventional speakers.

o Available function of microphone and sensor, various applications (Mobile Phones, Telecommunication Equipments, Security Equipments, etc.)

Thickness

Weight

Appearance(Design)

Diffusion (Sound)

Printing

Film Speaker

0.08mm

1g

Minimum Limitation

360

Possible

Conventional Speakers

More than 400mm

More than 200g

Spatial Limitation

60

Impossible

  Fundamentals of operating the Film Speaker

o Piezoelectric high polymers can be transformed by electricity. Thickness becomes expanded when the length and width are contracted, while it becomes contracted when the length and width are expanded.

Film contraction and expansion continues if AC electrical signal is given

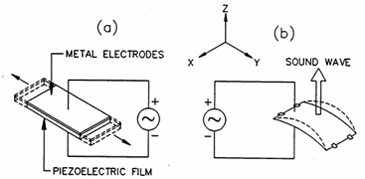

[The transformation of speaker film caused by applied electricity]
TECHNOLOGICAL SIDE
ㆍ High-Polymer, CNT coating technique
ㆍ Development of World-wide maximum caliber (28”) Sub Woofer
  ㆍ MRST Technology for film speaker
  ㆍ Pressure film heredity ratio improvement
DETAILS PRODUCTIVITY
ㆍ Commercializing the end-product for overseas market
ㆍ Large scale form output line construction(50,000 units/Month)
  ㆍ Owns the distribution networks throughout the World
  ㆍ Winning a Prize “38th 1Million Dollar Export Presidential” Award
ASPECT OF BUSINESS
ㆍ Monopoly merchandise with competitive power
ㆍ Sales Excellency for Domestic/ Overseas business
  ㆍ The business manpower security with professionalism and career
More
ㆍ Established Research Institute in High Technology Industry Centre
ㆍ Acquired reputation on recognition for small and medium business
